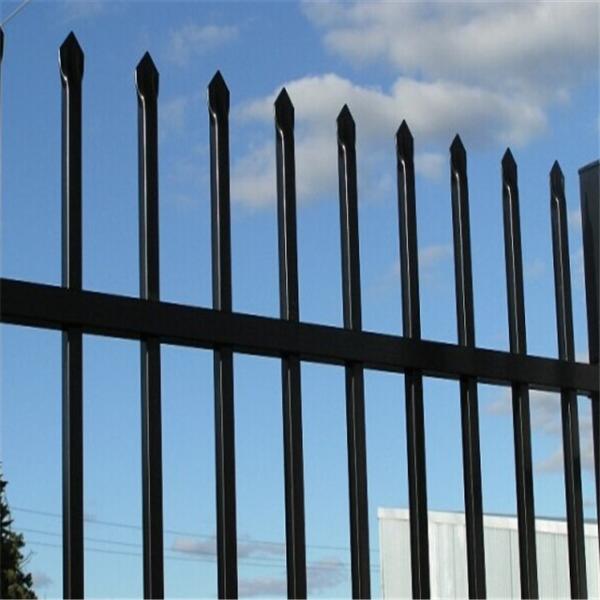

Powder Coated Spear top steel Palisade fence / Wrought iron spear top Steel palisade Security Fence
Wrought iron fence Quick Information
| Materials: | Q235 | Color: | Black And Grey Or Other |
| Dimensions: | 1800mm X 2400mm ,2100mm X 2400mm Or Customized | Salt Spray Testing: | Pass |
| Treatment: | Powder Coated ,Hot Dipped Galvanized | Technical: | Punch Pipes And Welding Etc |
| Nick Name: | Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental Steel Fence | Upright Pipes: | 25mm X 25mm X 1.20mm |
| Rails: | 40mm * 40mm * 1.60mm | Post: | 65mm X 65mm X 2.00mm X 3000mm |
| Popular: | Powder Coated Stain Black | Apllication: | Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence |
Wrought iron fence Drawings and Common Specifications:

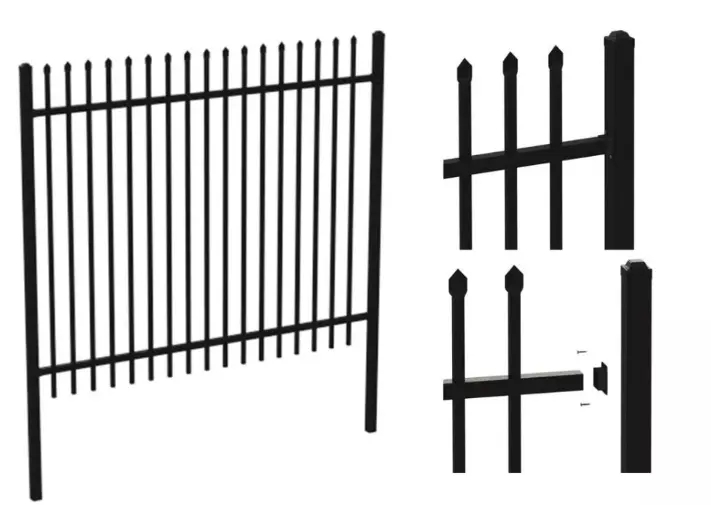

Drawing:
Specification introduction:
1. Heavy duty Crimp top picket steel fence in Black color only
2. Width 2400mm x Height 1800mm and Width 2100mm x Height 1800mm
3. 40x40x1.6mm top rail,25x25x1.2mm Verticals
4. There are 17 vertical pickets 20x20mm with diamond crimped on
top.
5. Gap in between the pickets is110mm
6. 60x60x2mm thick post - these are 3m long each not 2.6m long as
others supply.
7. Normal fence powder coated brackets
8. Security fence brackets (powder coated )
9. Caps for 60x60 posts (powder coated )
10. Phosphate treated before powder coating (Very Important)
Wrought iron fence Details:
Pickets top is so important. It must sealed very well on the top, or it is easy to rust. We can insure you sealed very
well pickets.Which highly improved the lifetime of the fence:
Horizontal Rails:
Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm rail
Type2: Punch square hole on 40*40mm rail or 20*40mm or 45*45mm rail

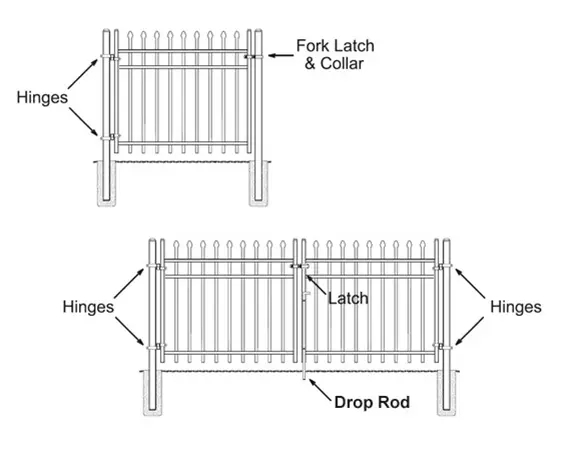

Wrought iron fence Gate:
Single Gates;Double Opening gates;Sliding Gate;Suspended gate.
Our Product Advantage:
Technology Procedure:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2. Phosphate conversion coating: Promote adhesion between steel and
coating film;
3. Polyester colorful coating: With extra anti-UV rays, corrosion
and self cleaning.
4.AkzoNobel powder coted surface makes fence easy to clean, rain
wash can resume bright.
5.3-layer antiseptic treatment can preserve the newness for 10
years, decreases your expense of maintenance.
6. Advanced galvanized and powder spraying process makes rail
service life 30 years even in bad conditions.
Colorful surface and excellent decorative pattern meet your special demands for handrail.
Our Services:
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in
professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained
and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you
best quality of the products.
