Engineered Total Fencing Solutions
8 Years
| Ask Lasest Price | |
| Brand Name : | KOCHFENCE |
| Model Number : | KF-100 |
| Certification : | ISO9001，CE，SGS, BV |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 600 seets/ day |
| Delivery Time : | 5-8 work days |
Product Features:
1. High Anti-Corrosion:
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating,
it can resist the corrosive and ultraviolet radiation very strongly.
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20/m2 | 60/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100 microns | 120 microns |
2. Design Advantage:
The design of double wires can stay the destroy, it is suitable for the high security place.
3. Choice of colors:
Every RAL colour desired can be delivered, for example the colours
corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available

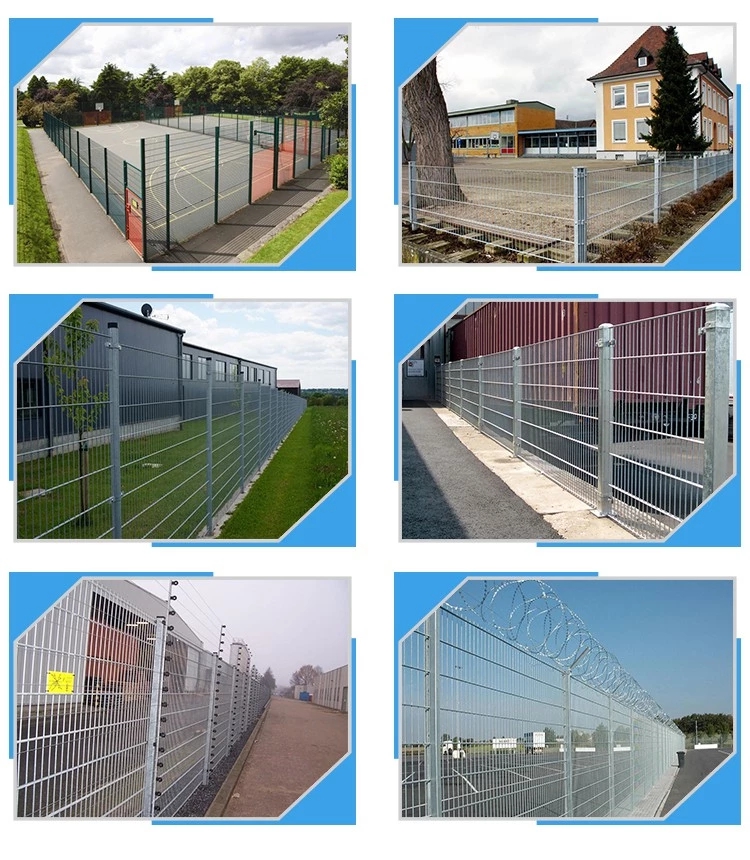

4. Range of Application:
Power station, commonality construction, jail, airport, military base, country border and other high security area and place.
Extra choose the angle steel, barbed wire or razor wire fence to make more security.
Product Details:

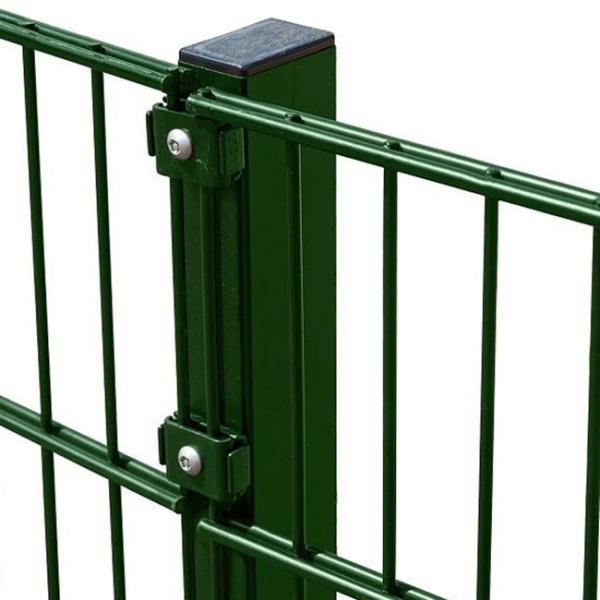

The fence is composed with flawless welded steel post and high strength welded horizontal wire fence,
flat and strong panel with high tensile strength, it is a high security fence system, the parts are connected
with special way without fitting, high fastening and convenient installation.

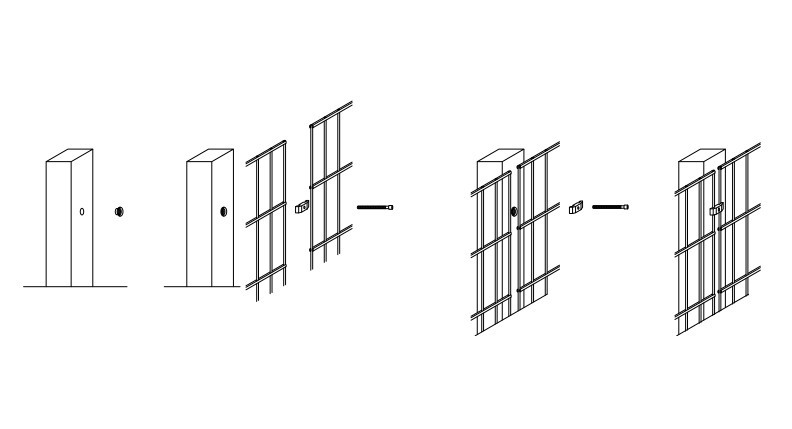

Installation:
Specifications:
| Mesh-T1 | Mesh-T2 | Height | Width | Line wire x cross wire | Post length | Nos. Of brackets |
| 50x200 | 55x200 | 1800 | 2500/2750/3000 | 6.0+5.0+6.0 8.0+6.0+8.0 | 2400 | 4 |
| 2000 | 2500/2750/3000 | 2600 | 6 | |||
| 2200 | 2500/2750/3000 | 2800 | 7 | |||
| 2400 | 2500/2750/3000 | 3000 | 8 | |||
| 2800 | 2200/2300 | 3500 | 9 |
Post (4 options with different sections)
• 60x60mm and 50x50mm SHS steel Post
• 40x60mm RHS steel post
• 50x70 and 70x100 Peach shape post
• 48mm and 60mm Round section post
Post sections:
Post (Fittings-Clamps and rain hat)
• Plastic Clamps and rain hat
• Metal Clamps and rain hat
Product Packing:
1. Panel: Metal pallet wrapped with cardboard plate and then wrapped with plastic film.
2. Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film.
3. Accessories: Carton
4. Customized packing is available.
-Q-: What makes your fence products different from other company’s?
-A-: KOCHFENCE provides free design service, customization and warranty service, with strictly quality control and very
competitive price.
-Q-: Can I get a pcs of your products sample?
A-: Yes, free samples will be provided anytime.
|
|
