358 security anti-climb airport electric prison fences/Security Anti-climb PVC Coated 358 Fence
Product information:
High security fence system is well known in the world as an anti-climb & anti-cut through barrier,while providing the lowest level high quality carbon steel wires.It is designed to give attractive,long lasting and secure perimeter protection for industrial and commercial properties,public utilities,and it is really suited for electronic alarm and detection systems-no blind spots for CCTV.It is also a good choice for Military,airports,secure units and prisons.
Surface treatment:
1. Hot dipped galvanized wire + PVC coated
2. Electro galvanized wire + PVC coated
3. Hot dipped galvanized after welding
4. Electro galvanized after welding
Product Specification:
| Panel-Type A(2D view) | ||||
| Mesh | Wire Thickness | Surface Treatment | Width | Height |
76.2×12.7mm | Horizontal wire:3,3.5,4mm Vertical wire:4mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | 2.5m or 2.2m | 1800mm |
| 2000mm | ||||
| 2100mm | ||||
| 2200mm | ||||
| 2400mm | ||||
| 2500mm | ||||
| 3000mm | ||||
| Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||
| Mesh | Wire Thickness | Surface Treatment | Folds Nos | Width | Height | |
76.2×12.7mm | Horizontal wire:3,3.5,4mm Vertical wire: 4mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | 3 | 2.5m or 2.2m | 1800mm | |
| 3 | 2000mm | |||||
| 4 | 2100mm | |||||
| 4 | 2200mm | |||||
| 4 | 2400mm | |||||
| 5 | 2500mm | |||||
| 6 | 3000mm | |||||
| Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||||
| Panel-Type C(2D View,adding wire) | ||||||
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Height | ||
100×15mm | Horizontal wire:3.5mm Vertical wire: 5.5mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | 2.5m or 2.2m | 1800mm | ||
| 2000mm | ||||||
| 2100mm | ||||||
| 2200mm | ||||||
| 2400mm | ||||||
| 2500mm | ||||||
| 3000mm | ||||||
| With additional horizontal wire of 3.5mm at 18cm intervals | ||||||
| Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||||
Benefits:
Anti-Climb
Protects against cut-through
Increased delay factor
Excellent visibility
Vandal resistant
Compliments CCTV
Versatile
Cost effective

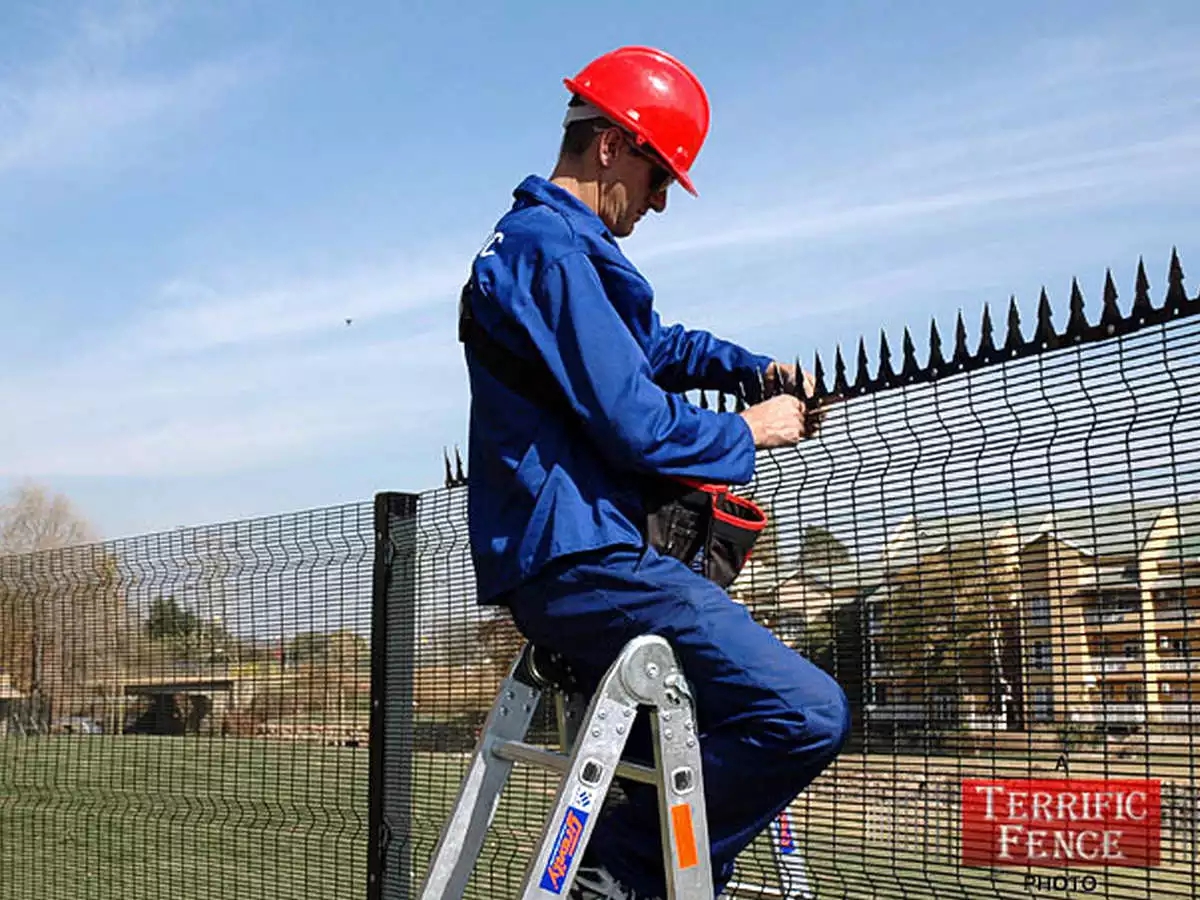

Installation:

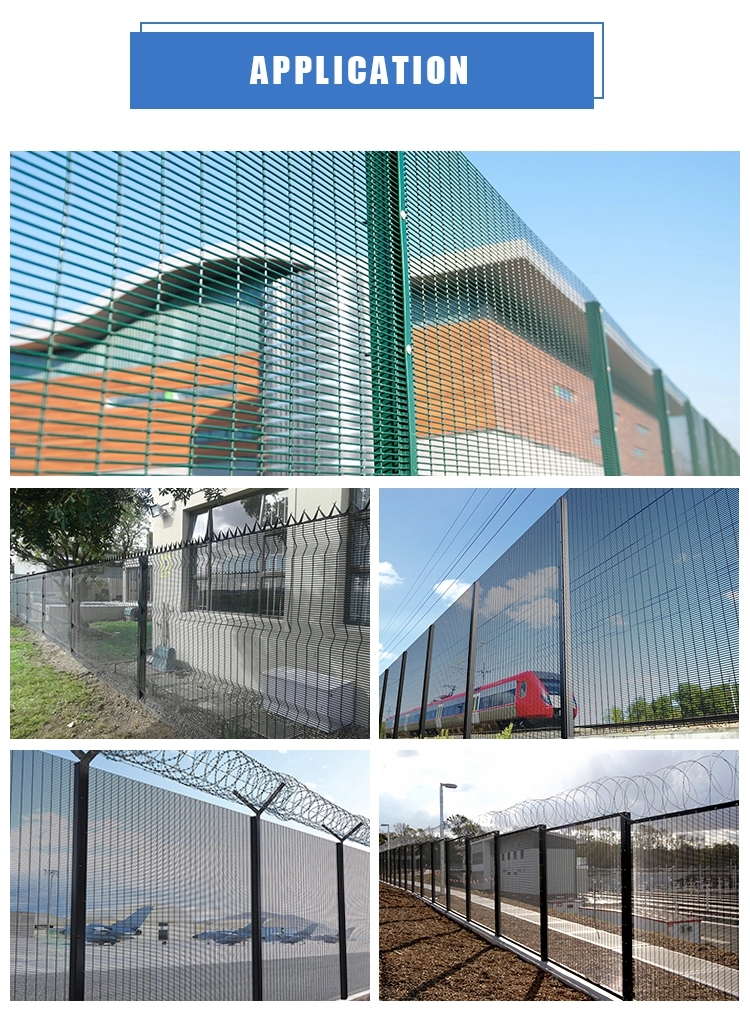

Application:
1.Bridge anti-climb guarding&guard safety screening; Sub-station security fencing;
2.Psychiatric hospital security fencing;
3.Factory machine guards;
4.Walkway security fencing;
5.Airport security fencing;
6.358 wire mesh fence gates;
7.Shipping port security fencing;
8.Electrical sub-station fencing;
9.Water treatment works;
10.Gas security window grilles;
11.Balustrades security fence as well as some other commercial/industrial security fence
Packing & Shipping:
|
|
