Woven Galvanized Steel Farm Fence/cattle farm fencing iron wire fencing

Product Description

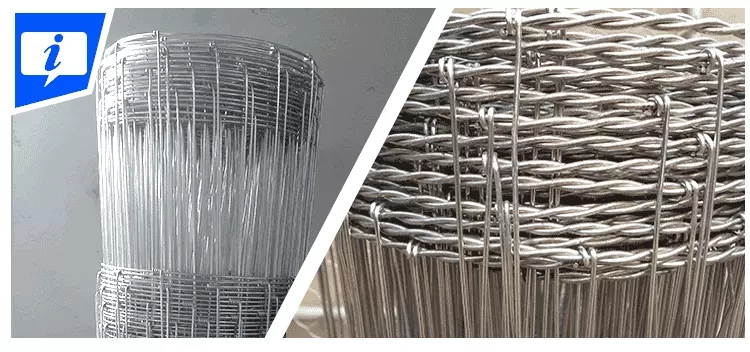

The livestock wire fence made by mild steel wire and high tensile steel wire. Now KOCHFENCE mainly offers two types: hinge joint knots and fix knots.The hinges joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.

Hinge Joint Knots and Fixed Knots Fence Specification

Height Range: 0.6 to 2.5 meter available.

Vertical wire distance : 50, 100,150,200,250,300,350,400mm available

Length : 50 Meter , 100 Meter and 150 Meter available .

Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized.

Product Advantage

1) On the basis of the ordinary Field fence, an advanced pressure wave process is adopted, and one or

wo deep 12 mm wide and 40 mm bends are pressed on each mesh of the horizontal wire.T his kind of

technology makes the mesh surface flatter and effectively enhances the elasticity of the mesh surface.

It alleviates the deformation of the mesh surface caused by thermal expansion and contraction in areas

with large climate change in winter and summer. Since the ripple increases the cushioning force of the

mesh surface, the mesh surface can automatically return when the beast hits.

2) There are different types of the “ knot “ can be made. We can make it according to customers request.

The Hinge Joint Knots and the Fixed Knots have difference advanced. The hinge joint knots is the most

common knot in agricultural fencing. The Fixed Knots fence increasing the fence’s vertical strength

allowing for increased post spacing and making it very resistant to animal damage.

3) The Stay wire and the Line wire can be adjusted. It can make to be a few wires or more wires according

to the farmland request. For example, if your only for Person proof you just can choose the bigger line wire

distance. If you need proof the small animals get through, then you can choose with more lines wire and the

vertical wire distance can be smaller too.

4) The fence also can make custom sized, you can tell us your requirements then we can design the

suitable fence for you. Please check the Photos it is the one we made for our customers from New Zealand,

they want the more strength of the edge wire, so we use the double wire to make the Edge of the field fence,

it has more high tensile avoiding the animals attacked the fence

Product Application

Quality assurance

Quality and Service is Our Priority
We have our own quality test office, we test our products before delivery.
We take our responsibility to our customers very seriously, we are responsible for every product,

your satisfaction is to give us the best repayment.

KOCHFENCE is industry leader in fencing solutions, perimeter protection, access control and crowd control.

KOCHFENCE provides Engineered Total Fencing Solutions to protect industrial buildings, private gardens, public infrastructures, rails, expressways, agricultural sites and livestock. Over the years, the company has evolved from a fence panel manufacturer to an Engineered Total Fencing Solutions Supplier.

KOCHFENCE is operated by an energetic, experienced and honest fencing expert team.
