1. Cheap cattle panels for sale spectification
| Specification | Normal size |
| Height x Length | 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m 3.37*1.8m |

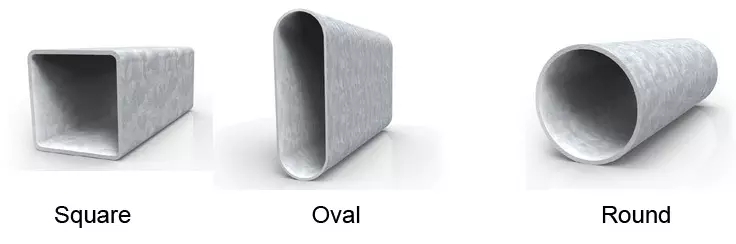

| pole style | Round pipe or square tube or oval tube |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
We can also produce with your demand.
2. Cheap cattle panels for sale process

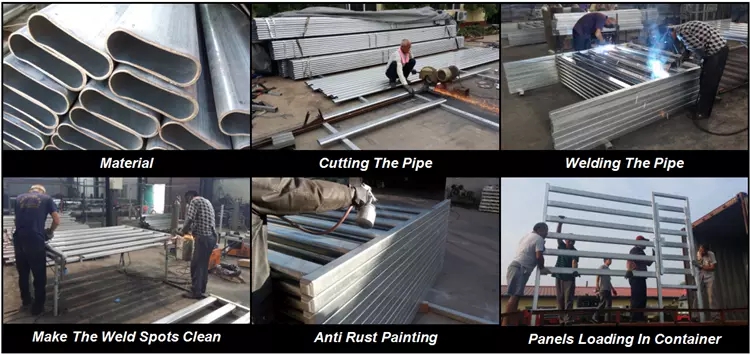

Welded craft:hot dip galvanized tubes—welded together—welding spots polishing—spots antirusting paint—spots silver paint.
3. Cheap cattle panels for sale Feature
1>Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
2>Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable
3>Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
4>Livestock Protection: no sharp edge, very smooth welding spot finihment.
4. Cheap cattle panels for sale with different style
1>Round style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | More than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| Horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
2>Square tube style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | More than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
3> Oval tube style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | More than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
5. Cattle Panel Gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: | Hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
6.Cheap cattle panels for sale application
Used in raising the animals,specially the cattle,the cow,the horse,the sheep etc.
7. Package of Cheap cattle panels
1>There is a layer of bubble wrap at the bottom of pallet, which can protect the last barrier;
2>There is a small piece of carton paper between each two barriers to prevent rubbing against each other;
3>There is also carton paper under the pacing belt;
4>Finally all barriers will be packed by several layers of plastic film.
Koch Metal Net Co.,LTD is a professional manufacturer and exporter of series wire mesh products. This company is located in Anping which is well known as Wire Mesh Land of China, enjoys convenient transport condition being close to Beijing, Capital City of China and Tianjin, one of the most important seaport in North China.
|
|
