Durable double wire fence twin wire mesh fence with factory price/ high security 868 double wire mesh fence

Basis Information:

Our double rod gratings (grid fencing) are a decade long proven fence system which is used in the industry, business and private sector.

Normally fences made of double rod gratings and fence posts which are electro galvanized and coated with green are available from stock.

1. Panel

Wire dia:8/6/8mm, 6/5/6mm, 5/6/5mm

Mesh: 50x200mm is the most often used

Size: height 630mm-2430mm, width 2m, 2.5m, 3.0m

Surface Treatment: hot dip galvanized, electro galvanized+pvc spraying coated, electro galvanized+pvc dipped coated

2. Post: with plastic caps or roofing rainhat
Square Post (50*50mm*1.5/2.0mm, 60*60mm*1.5/2mm),

Rectangular Post (40x60mm, 60x80x2.5mm, 60x120x3mm),

Peach shape post(50x70mmx1.2mm, 70x100x1.2mm),

Round post(48mm, 60mm, 1.5/2.0/2.5mm thickness)

The finished surface usually is electro galvanized+powder coating

3. Fastenings:
The panels and posts can be jointed together with bolts or rivets, using the steel flat bar, or special steel clamps,

all nuts are self-locking. Or with plastic M clamps, square clamp, circular clamp for square post, without any clamp for peach shape post

4. Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

5. Common Post:
This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

Characteristics:

The panel is welded different, with two horizontal wires. It en:able the fence much stronge.
Widely used in highways,railways,airports,bridges,parks,etc.

Application:

The 2D Double wire mesh fence is widely used as a perimeter fence for industrial,
commercial public places where a strong mesh fencing system is required.

1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In Parks, Zoos and nature reserves

Technology Parameter:

Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns

Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.

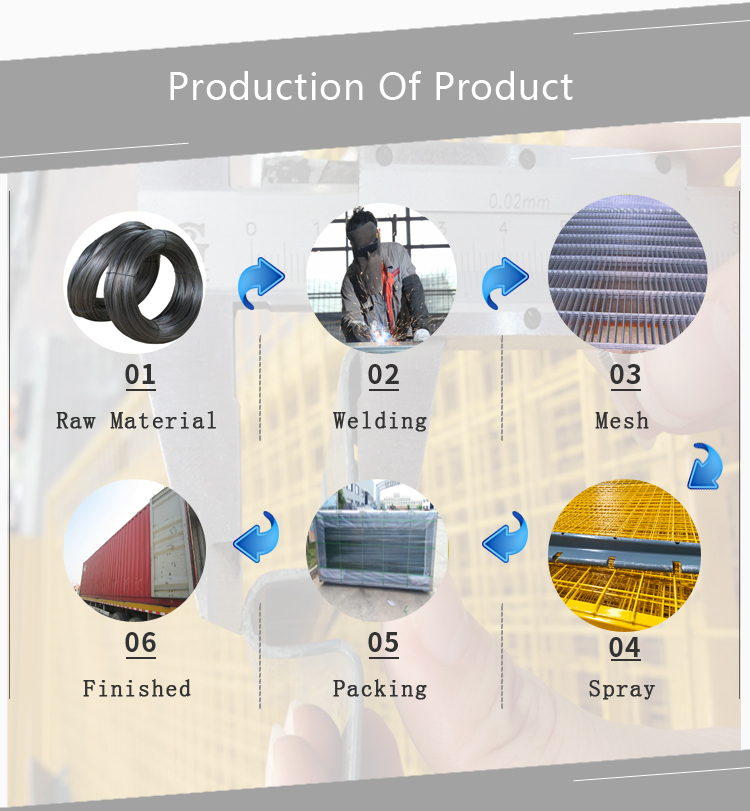

Product process:

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance
